Siemens Apogee P1 Driver for Tridium Niagara

Siemens Apogee is a two-tier building automation system. The upper tier is the field panel network (BLN/ALN), where panel controllers communicate using the P2 protocol over Ethernet. The lower tier is the FLN (Floor Level Network), where field devices like TECs and UCs communicate over RS-485 using the P1 protocol.

The Apogee P1 Driver connects Niagara directly to the field level, bypassing panel controllers entirely. Use P1 when you want direct RS-485 access to TECs and other FLN devices; use Apogee P2 when you want to preserve existing panels and access the entire building through them. For remote sites without a local JACE, pair the P1 Driver with the Virtual Serial Port driver to reach RS-485 devices over TCP/IP through a serial-to-Ethernet gateway.

In many Apogee and System 600 installations, supervisory controllers and management software have aged while field-level TECs and sensors remain fully functional. The P1 Driver provides a cost-effective modernization path — replacing the supervisory layer with Niagara while preserving existing field equipment, delivering modern visualization, analytics, and integration capabilities without disrupting working infrastructure.

The driver communicates using Siemens’ proprietary P1 protocol — a master-slave, half-duplex protocol operating over RS-485. Each device on the FLN responds only when polled, ensuring deterministic communication essential for HVAC control. The driver supports automatic device discovery by scanning the address range, identifying each device’s revision code and application type. Point discovery automatically maps point names, engineering units, and scaling factors without requiring manual configuration.

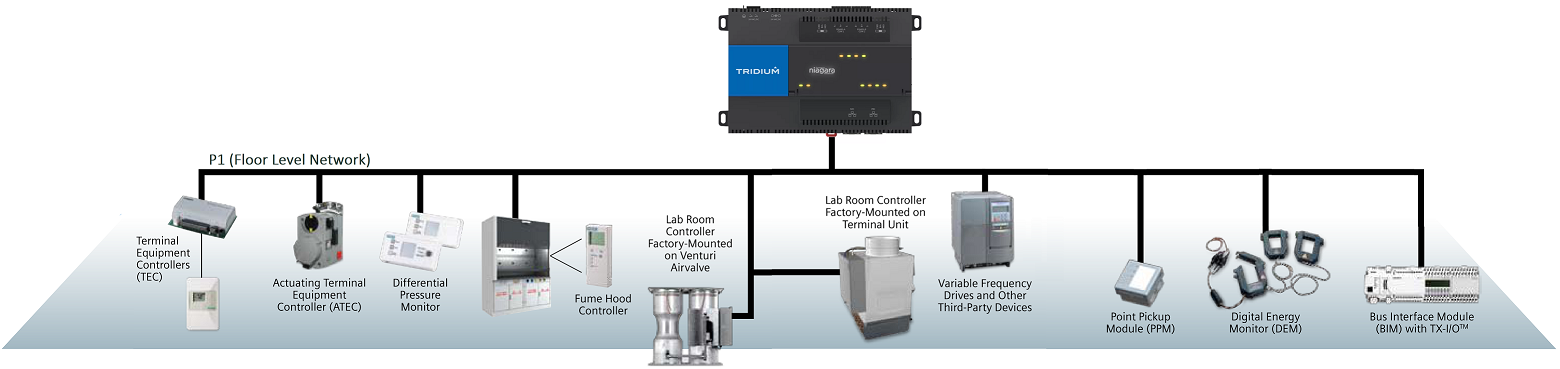

P1 field devices span the full range of building automation applications. TEC (Terminal Equipment Controller) models handle VAV boxes, fan coils, heat pumps, and unit ventilators — the workhorses of commercial HVAC systems. Variants include ATEC (Actuating TEC) for direct-actuated applications, PTEC (Programmable TEC) for custom sequences, and LTEC (Local TEC) for standalone fan coil and unit ventilator control. UC (Unit Conditioner) controllers manage packaged HVAC units, while DPU (Digital Point Unit) modules provide general-purpose digital I/O. Point Pickup Modules (PPM) extend I/O capacity for custom sensor and actuator integration, while Digital Energy Modules (DEM) and MD-P1 power meters provide comprehensive energy monitoring. VFD (Variable Frequency Drive) integration enables monitoring and control of motor drives through Apogee FLN interface cards, and Bus Interface Modules (BIM) bridge third-party TX I/O devices onto the P1 bus. LCM (Lab Controller Module) units manage fume hood and cleanroom applications with dedicated differential pressure monitoring.

The Apogee and System 600 platforms represent decades of Siemens presence in building automation, with installations spanning commercial offices, healthcare facilities, educational campuses, and industrial complexes worldwide. The P1 protocol, developed approximately 40 years ago, remains proprietary to Siemens Building Technologies but continues to serve thousands of facilities reliably. Many of these installations feature perfectly functional field equipment connected to supervisory systems that no longer meet modern operational requirements.

Tridium’s Niagara Framework offers the ideal modernization platform for these legacy Siemens systems. As an open, interoperable framework, Niagara unifies diverse building systems under a single management interface while providing enterprise connectivity, advanced analytics, and mobile access. The P1 Driver extends these capabilities to the FLN field level, creating a seamless bridge between proven Siemens hardware and contemporary building management requirements.

If you manage a facility with Siemens Apogee or System 600 equipment and need to modernize your building automation infrastructure, Baudrate’s Apogee P1 Driver for Tridium Niagara provides the integration solution. Whether upgrading supervisory systems, consolidating multiple buildings under unified management, or enabling new analytics and optimization strategies, the P1 Driver preserves your field-level investment while unlocking the full potential of the Niagara platform. Schedule a consultation today to discuss your Siemens integration requirements, or contact us for a free trial to evaluate the driver in your environment.
