IEC 61850 MMS Driver for Tridium Niagara

IEC 61850 Driver for Tridium Niagara represents an advanced solution for integrating modern substation automation and smart grid applications with comprehensive building automation systems.

The IEC 61850 protocol is the international standard for communication in electrical substations, defining object-oriented data models and services for substation automation systems. This protocol enables sophisticated integration of protection relays, intelligent electronic devices (IEDs), and monitoring equipment through standardized data models and MMS (Manufacturing Message Specification) communication services. Widely deployed in electrical substations, power system automation, renewable energy systems, and industrial power systems, IEC 61850 has become the cornerstone of modern smart grid infrastructure.

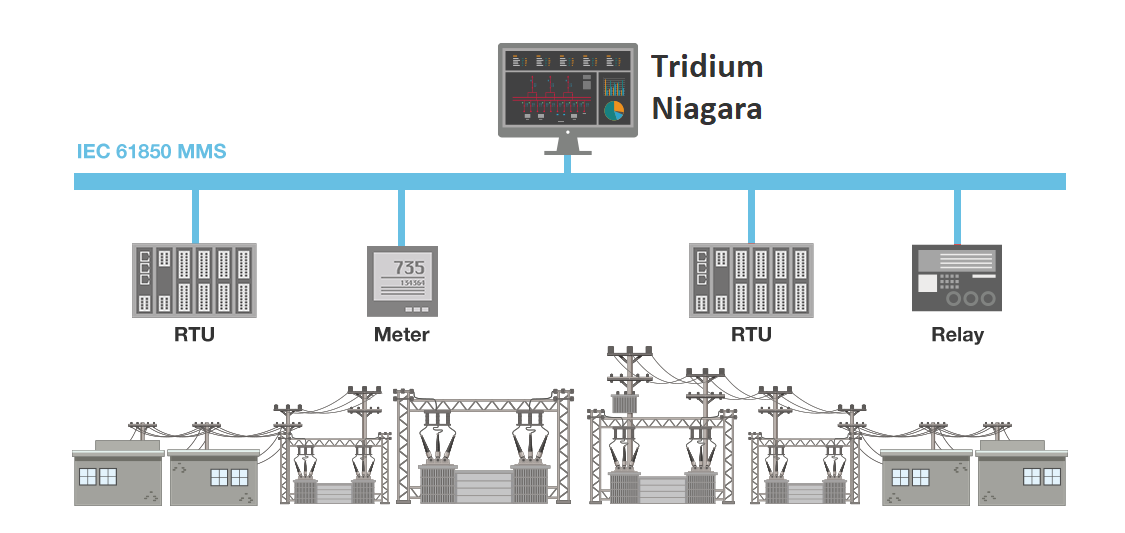

Our IEC 61850 Driver acts as a client that connects to IEC 61850 servers such as protection relays, IEDs, and substation gateways. The driver automatically discovers the complete device data model through MMS directory services and provides seamless integration with Niagara’s point management system. By supporting hierarchical data organization with Logical Devices, Logical Nodes, and Data Objects, the driver maintains the standardized structure that makes IEC 61850 so powerful for complex substation applications.

Key advantages of the IEC 61850 Driver include its robust MMS communication capabilities over TCP/IP on standard port 102. The driver handles the complete IEC 61850 object model including all standard Logical Node types such as XCBR (Circuit Breaker), MMXU (Measurement Unit), PTOC (Overcurrent Protection), and GGIO (Generic Process I/O). Advanced features such as automatic model discovery, functional constraint handling, and efficient data reading ensure reliable operation in mission-critical environments.

In practical applications, the IEC 61850 Driver is essential for modern substation automation and power system monitoring. In electrical substations, it enables real-time monitoring of circuit breaker positions, current and voltage measurements, power quality parameters, protection settings, and equipment health status. For renewable energy installations, the driver provides integration with wind turbines, solar inverters, and energy storage systems that increasingly adopt IEC 61850 for standardized communication.

The driver implements read-only functionality optimized for safe monitoring operations in critical infrastructure environments. This approach ensures comprehensive visibility into substation equipment status while preventing unintended control operations. The driver supports automatic discovery of the complete IEC 61850 data model, eliminating the need for manual configuration and ensuring all available data points are accessible.

IEC 61850’s object-oriented approach represents a significant advancement over traditional protocols. Unlike simple address-based systems, IEC 61850 uses a hierarchical naming structure that reflects the logical organization of substation equipment. Each data point is uniquely identified by its path through the model hierarchy, such as “PROT/XCBR1.Pos.stVal” for a circuit breaker position or “MEAS/MMXU1.A.phsA.cVal.mag.f” for phase A current magnitude. This semantic richness enables intelligent applications and simplified system configuration.

Tridium Niagara’s open framework architecture provides the ideal platform for integrating IEC 61850 devices into comprehensive energy management and building automation systems. The combination enables facility managers to monitor critical power infrastructure alongside HVAC, lighting, and security systems through a single, unified interface. This integration is particularly valuable for mission-critical facilities, industrial plants, and smart buildings where power system reliability directly impacts operational continuity.

Leading protection relay manufacturers worldwide support the IEC 61850 ecosystem:

• ABB - Relion series (615, 620, 630, 650, 670), REF 54x
• Siemens - SIPROTEC 5, SIPROTEC 4, Reyrolle 7SR series, SICAM automation controllers
• Schneider Electric - Easergy P3/P5, Sepam 20/40/80, MiCOM P series, Easergy VAMP
• GE Grid Solutions - Multilin UR, Multilin 8 series, MiCOM P40 Agile, F650
• SEL - 300, 400, 700 series (SEL-751, SEL-421, SEL-487)
• NR Electric - PCS series, RCS series
• Hitachi Energy - Relion series, FOX 615
• ZIV - e-NET Flex (IRF, IDF, IRL), e-NET Lite
• Eaton - E-Series relays, Form 6 recloser controls
• Basler Electric - BE1-11 series, BE1-7, BE1-87
• Toshiba - GR-200 series, GR-100 series
• Mitsubishi Electric - MELPRO-D series, K/M series
• Thytronic - X-MORE series, NT series
• Arteche - Various protection/control relay families
• LS Electric - GIPAM series

If you are looking for a solution to integrate IEC 61850 compliant devices into your Tridium Niagara platform, Baudrate’s IEC 61850 Driver provides the sophistication and reliability required for modern substation automation and smart grid applications. Schedule a consultation today to see how we can help unlock the full potential of your IEC 61850 infrastructure within your building automation ecosystem. Contact us for a free trial of the IEC 61850 Driver, and take the next step towards comprehensive power system integration.
